Fittings

Formula Perfect Low Pressure Hose Fitting

$1.15 Ea. - Click to Order

Sizes are available in various diameters, bore, and lengths. "ID" is the inner diameter, and "OD" is the outer diameter.

  • ○ Size A – OD: .170 inch (4.30 mm), Length: .225 inch (5.70mm) , Line-side ID: .118 inch (3.00mm), Connection-side ID: .083 inch (2.10mm)

Included In This Set

  • ○ Whatever you choose (both in sizes and quantity)!

Images

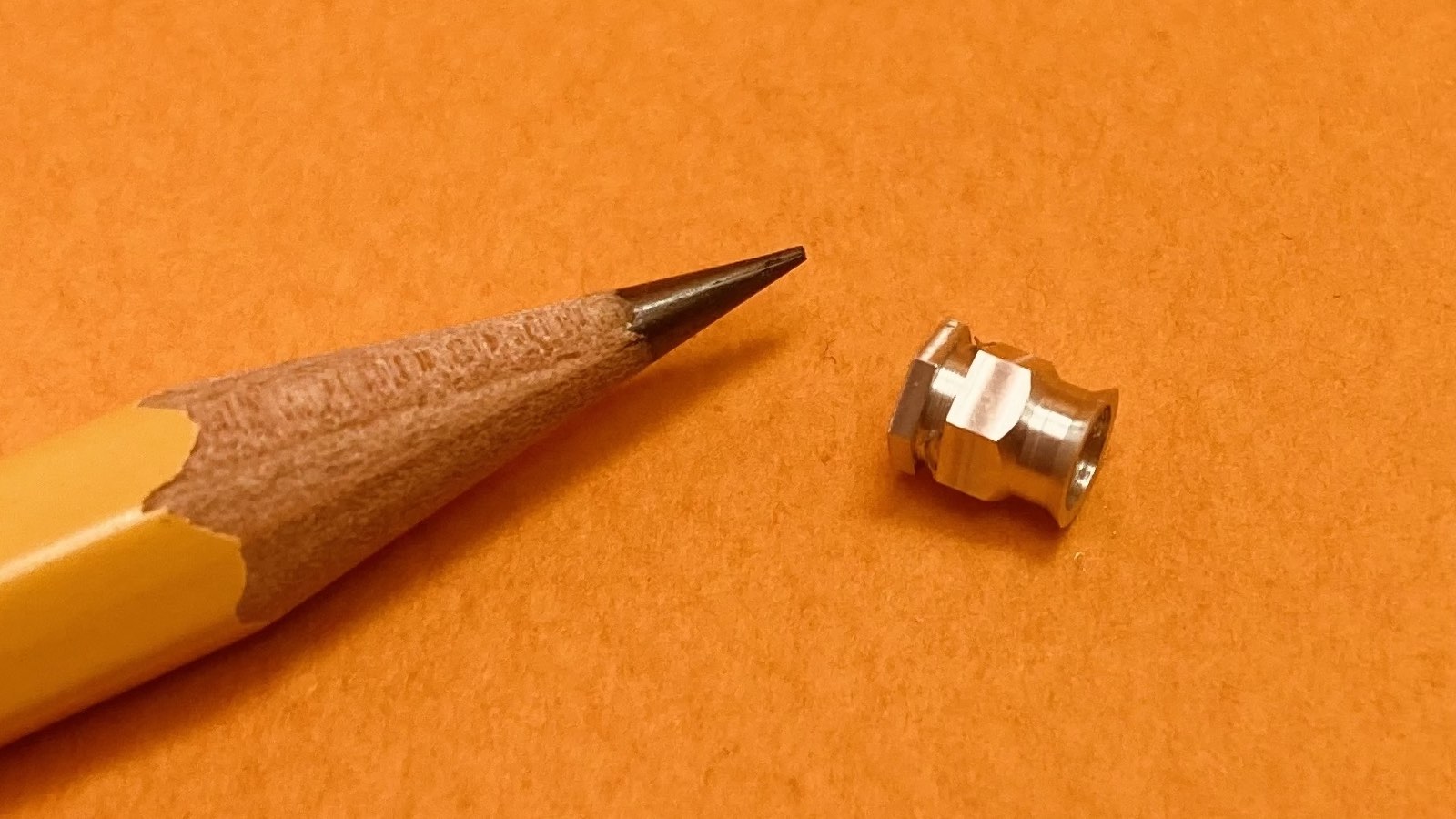

Low Compression Fitting

Formula Perfect Female Compression Hose Fitting

$0.95 Ea. - Click to Order

Sizes are available in various diameters, bore, and lengths. "ID" is the inner diameter, and "OD" is the outer diameter.

  • ○ Size A – OD: .180 inch (4.60 mm), Length: .146 inch (3.70mm) , ID: .083 inch (2.10mm)

Included In This Set

  • ○ Whatever you choose (both in sizes and quantity)!

Images

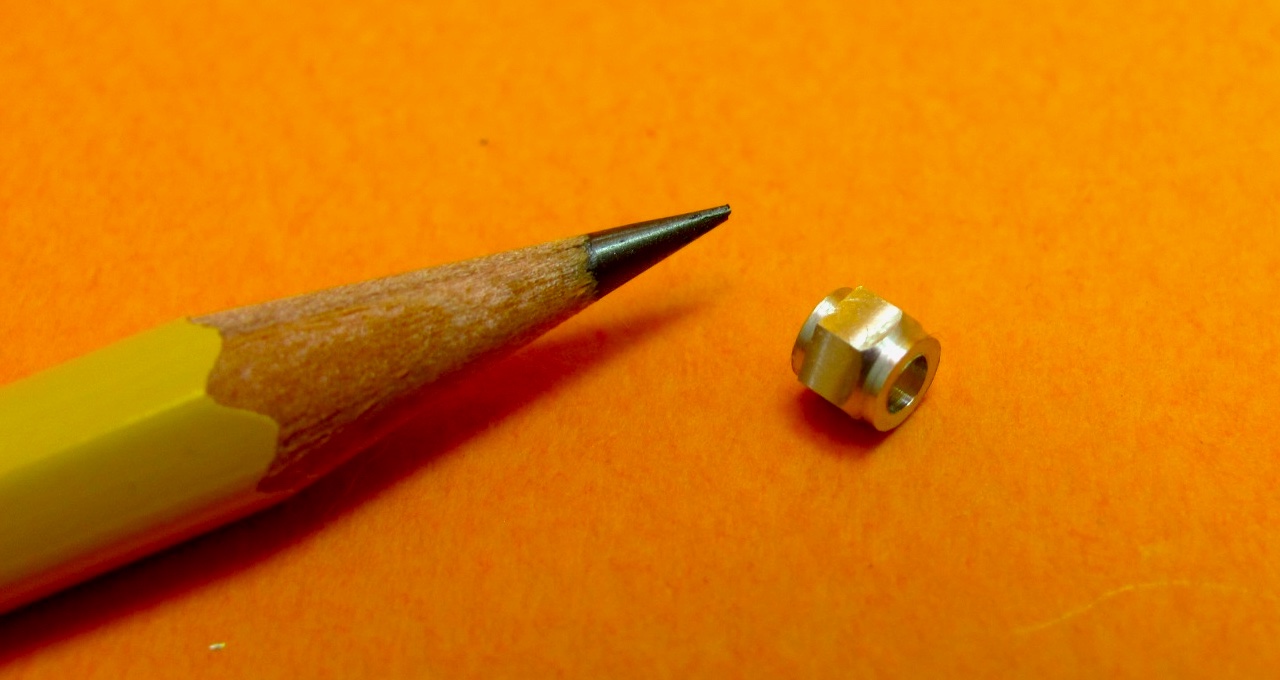

Female Compression Fitting

Formula Perfect Ferrell Hose Fitting

$0.95 Ea. - Click to Order

Sizes are available in various diameters, bore, and lengths. "ID" is the inner diameter, and "OD" is the outer diameter.

  • ○ Size A – OD: .150 inch (3.80mm), Length: .200 inch (5.00mm), Hose End ID: .118 inch (3.00mm), Line End ID: .084 inch (2.10mm)
  • ○ Size B – OD: .125 inch (3.20mm), Length: .170 inch (4.30mm), ID: .092 inch (2.3mm)

Included In This Set

  • ○ Whatever you choose (both in sizes and quantity)!

Images

Ferrell

Formula Perfect Banjo Hose Fitting

$0.95 Ea. - Click to Order

Sizes are available in various diameters, bore, and lengths. "ID" is the inner diameter, and "OD" is the outer diameter.

  • ○ Size A – Stem Diameter: .078 inch (2.00mm), Ball Diameter: .152 inch (3.90mm), Thickness: .087 inch (2.20mm), Bore: .082 inch (2.00mm)

Included In This Set

  • ○ Whatever you choose (both in sizes and quantity)!

Images

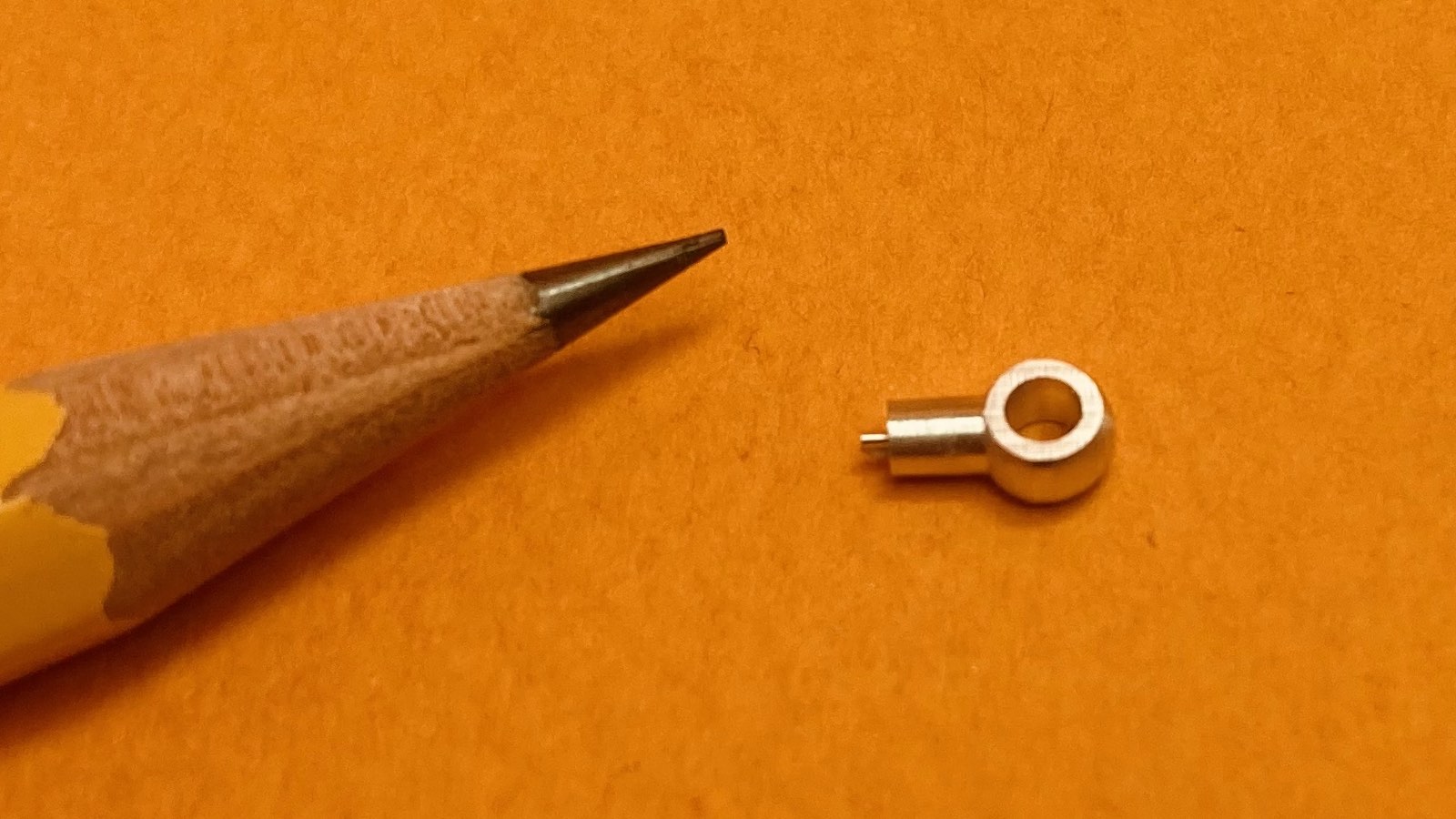

Banjo Fitting
